Mounting strap buttons

By using the strap buttons “OSB-108” (sold separately), you can attach a commercially available guitar strap to your Omnichord.

Things to prepare

• OSB-108 (set of two strap buttons and two screws)

• PH2 screwdriver

! CAUTION

" Keep the strap buttons out of reach of small children.

" Be careful not to get hurt when handling the screws.

# Do not use commercially available strap buttons. Doing so may damage to the mounting hole.

" Do not overtighten or install and remove the screws repeatedly. Doing so may damage to the mounting hole.

" Tighten the screws on a regular basis. If a screw is loosened, this unit may fall accidentally.

" Please also refer to the manual of your guitar strap.

OM-108_strappin

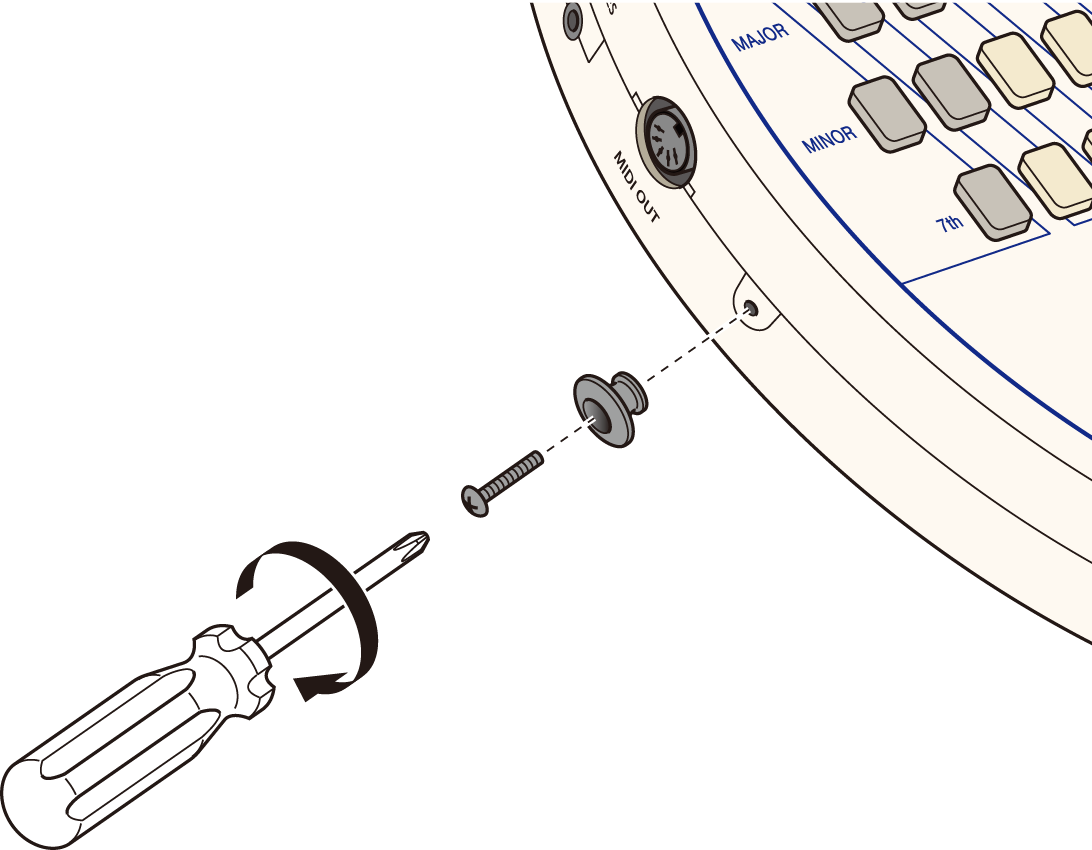

1     Insert a screw into the center of a button and align the tip of the screw with a strap button hole on the side panel (either left or right) of this unit.

2     Use a PH2 screwdriver to turn the screw clockwise.

Stop tightening the screw if there is no gap between the button and main body.

3     Use the same procedure to install a strap button to the other side of this unit.

Check the strap buttons are firmly secured to this unit before using a guitar strap.
