Playing chords

You can play 108 chords (in combination of roots and suffixes).

Root: Df, Af, Ef, Bf, F, C, G, D, A, E, B, Fs

Suffix: Major, minor, 7th, Major 7th, minor 7th, Augmented, diminished, suspended 4th, add 9th

Note

• The chords of this unit consist of triads. Fifth of the 7th, Major 7th, minor 7th and diminished chords cannot be played.

1     Set the controls as shown.

Knobs and buttons

Setting

[Master Volume]

Center

[STRUMPLATE]

[Sustain]

Maximum

[Main Volume]

Center

[Sub Volume]

Center

[RHYTHM]

[Tempo]

Center

[Volume]

Minimum

[CHORD]

[Volume]

Center

[REAL TIME CONTROL]

[Chord Manual/Auto]

Manual

[Chord Hold]

Disabled (LED turned off)

[Rhythm Start/Sync Start]

Sync Start

Tips

• To play chord sounds continuously, enable the chord hold function.

2     Press any of the chord buttons (one to three buttons).

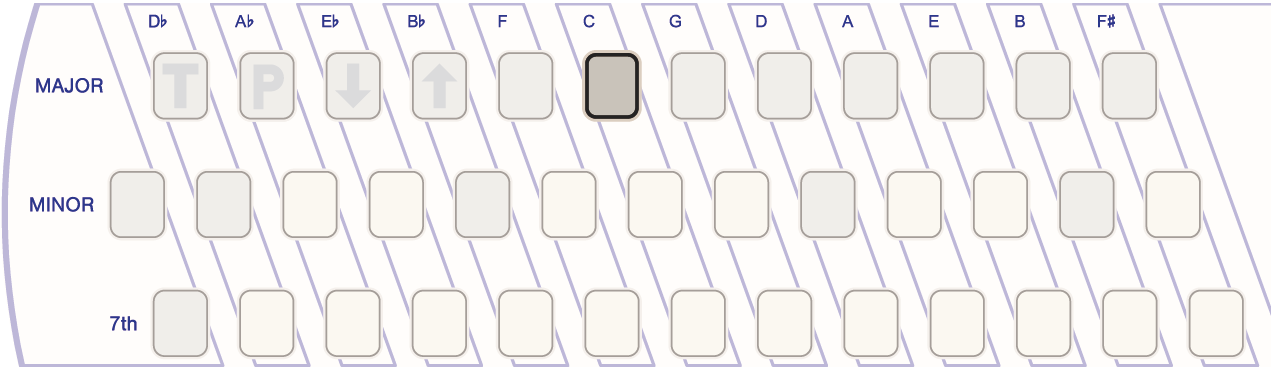

■ Major chord

(Example: C) Press the “C-MAJOR” chord button.

OM-108_Cnord_01

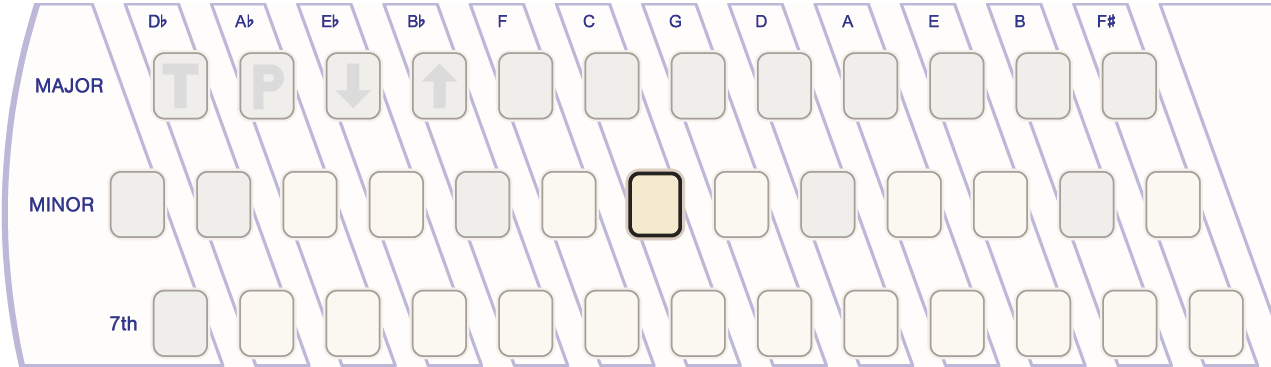

■ minor chord

(Example: Cm) Press the “C-MINOR” chord button.

OM-108_Cnord_02

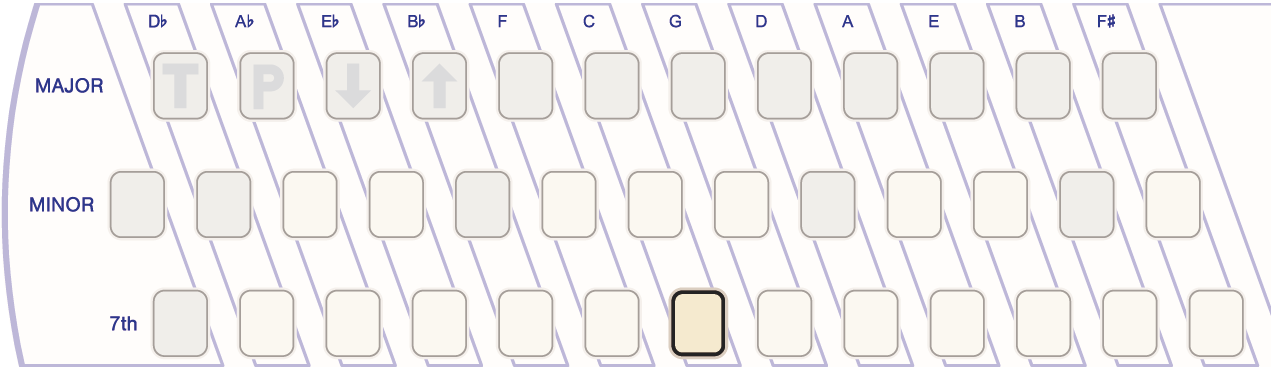

■ 7th (dominant 7th) chord

(Example: C7) Press the “C-7th” chord button.

OM-108_Cnord_03

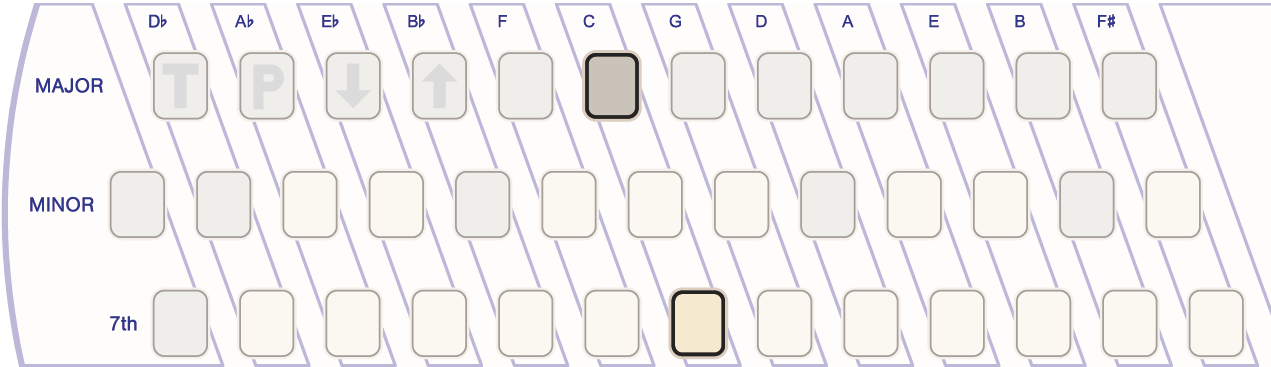

■ Major 7th (M7) chord

(Example: CM7) Press the “C-MAJOR” and “C-7th” chord buttons at the same time.

OM-108_Cnord_04

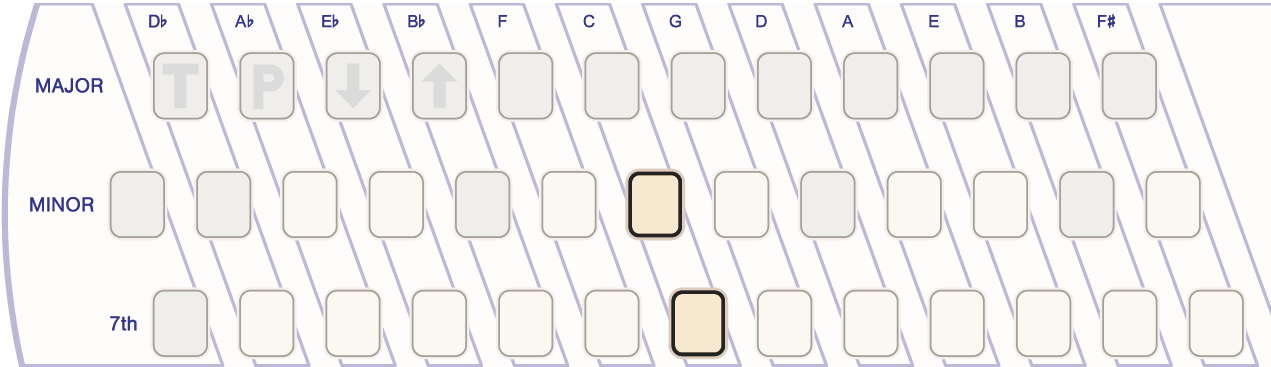

■ minor 7th (m7) chord

(Example: Cm7) Press the “C-MINOR” and “C-7th” chord buttons at the same time.

OM-108_Cnord_05

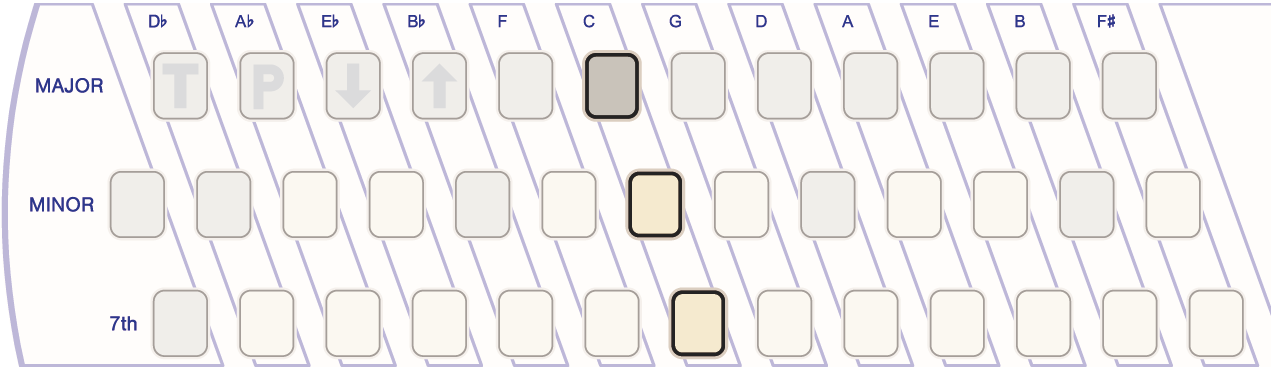

■ Augmented (aug) chord

(Example: Caug) Press the “C-MAJOR”, “C-MINOR” and “C-7th” chord buttons at the same time.

OM-108_Cnord_06

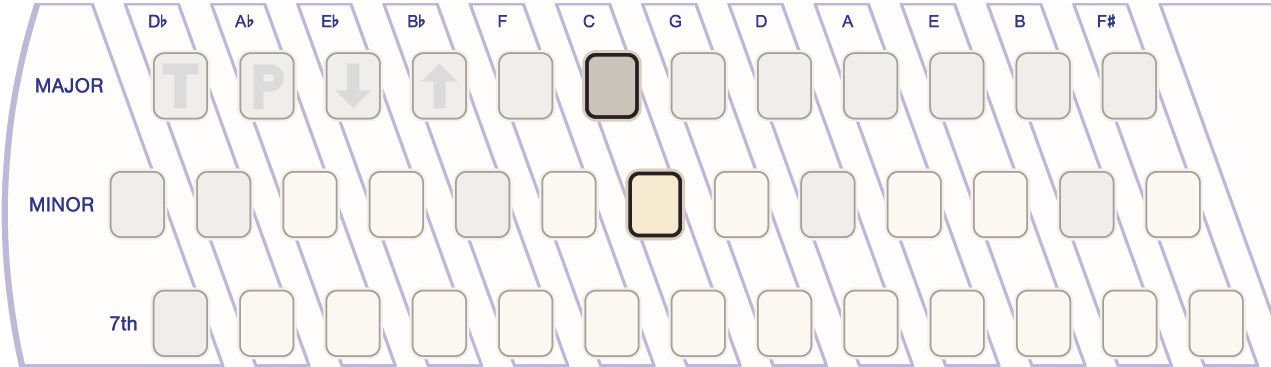

■ diminished (dim) chord

(Example: Cdim) Press the “C-MAJOR” and “C-MINOR” chord buttons at the same time.

OM-108_Cnord_07

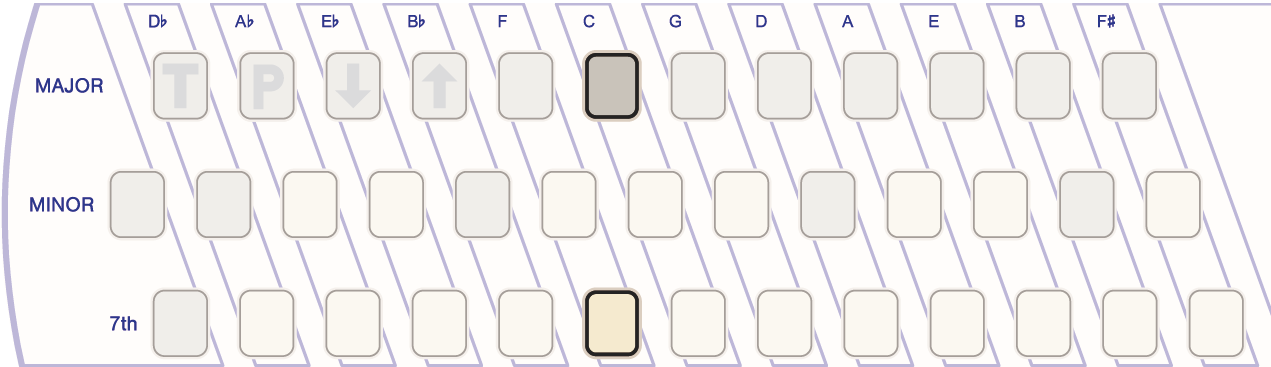

■ suspended 4th (sus4) chord

(Example: Csus4) Press the “C-MAJOR” and “F-7th” (left of “C-7th”) chord buttons at the same time.

OM-108_Cnord_08

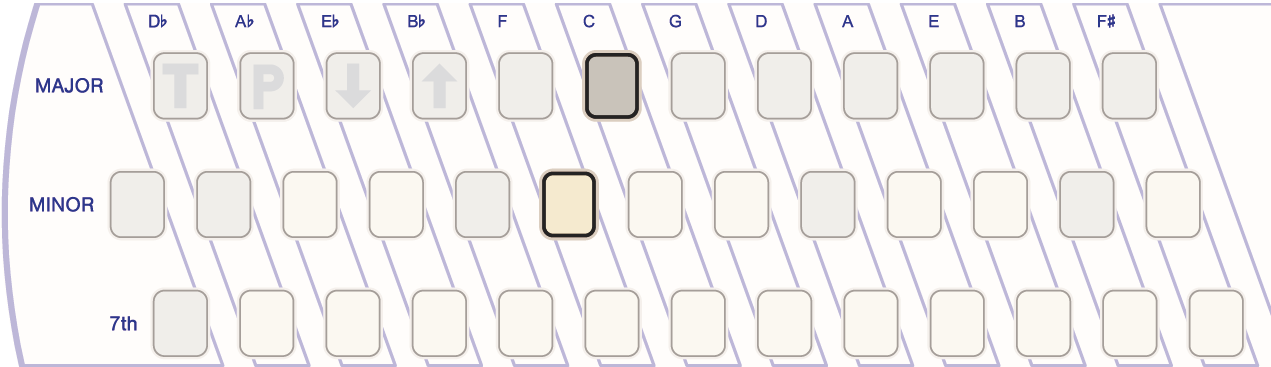

■ add 9th (add9) chord

(Example: Cadd9) Press the “C-MAJOR” and “F-MINOR” (left of “C-MINOR”) chord buttons at the same time.

OM-108_Cnord_09
